Parameters for Bands and Groups

Top  Previous  Next

1. Name - predefined header/footer names or one of the possible group names



2. Displayname name in " " - must be second position



3. Option +-

+ff  - start a new page after the band/group

-ff - start a new page before the band/group



Only header and footer: ("<<:HEADER>>)

+afterstretch - header/footer used after a streched band

+between - use band between records

-start - don't use header at start

-end - don't use footer at end



Only Data Bands ("<<:DATA>>)

-stretch - deactivate stretching (default = on)

+keep - keep this paragraph together with next

+newtable - start a new table



4. Condition ?...=...

The following conditions to use a band are possible:

=null  - field must be null

#null  - field must not be null

=zero  - field must be zero

#zero  - field must not be zero

="..." - the field must have a certain value

#"..." - the field must be different to a certain value

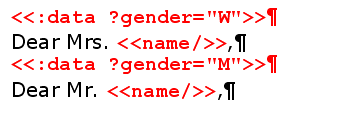

Example:

clip0186

Modify: Contents.IsNull to tell the engine that a field is null or zero.



5. Formula - must be last option

   @....



It is used as start condition in a group start and a continue condition if used in a group end token.



Any text in the paragraph after the closing '>>' will be ignored as comment!
