Example: Create comboboxes for edit fields

The object classes make it fairly easy to create a drop down field for an edit field.

Edit fields are standard mail merge fields (they are paired objects) which also use the mode wpWithinEditable.



drop_down_editfields





We need 2 class items.

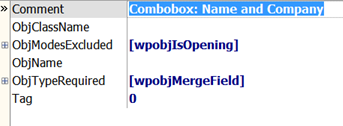

(A) This is used for the closing objects, here we display the drop down button.

clip0007



We need this event handler:

OnObjectClassPaintBackground - do not paint anything:

...

begin

  Handled := true;

end;



OnObjectClassPaint - paint the usual triangle:

...

var a : Integer;

begin

  a := XRes div 20;

  //Canvas.Brush.Color := clWhite;

  if r.Right-r.Left>Xres div 5 then

     r.Left := r.Right - Xres div 5;

  Canvas.Pen.Width := 0;

  Canvas.Pen.Color := clBlack;

  Canvas.Rectangle(r.Left, r.Top, r.Right, r.Bottom);

  Canvas.Brush.Color := Canvas.Font.Color;

  Canvas.Polygon(  [Point(r.Left+a, r.Top+a),

                   Point(r.Right-a, r.Top+a),

                   Point((r.Right+r.Left)div 2, r.Bottom-a)] );

  PaintContinue := [wpSuppressUnderline];

end;



OnObjectClassMouseDown - use a TListbox "FORMCOMBO_Listbox" which has been on the form to be displayed as drop down list.



We also use special code to assign the current font attributes to this listbox. This code is of course optional. We also require a global variable to store the current field name. This can be a string, in our example CurrField.

...

var AttrInterface : TWPAbstractCharAttrInterface;

begin

  if TWPCustomRtfEdit(Sender).GetObjXYBottomlineScreen(TextObj,x,y,true) then

  begin

      CurrField := TextObj.Name;

       dec(x, FORMCOMBO_Listbox.Width); // right aligned



       AttrInterface :=  TextObj.ParentPar.GetCharAttrInterface(TextObj.ParentPosInPar);

       AttrInterface.AssignTo(FORMCOMBO_Listbox.Font);

       AttrInterface.Free;



       FORMCOMBO_Listbox.Parent :=Sender;

       FORMCOMBO_Listbox.Tag :=  TWPCustomRtfEdit(Sender).TopOffset;

       FORMCOMBO_Listbox.Left := x; // +Sender.Left;

       FORMCOMBO_Listbox.Top := y; //+Sender.Top;

      if TextObj.NameIs('Name') then

             FORMCOMBO_Listbox.Items.Text := PicName.Lines.Text

      else  FORMCOMBO_Listbox.Items.Text := PicCompany.Lines.Text;

       FORMCOMBO_Listbox.Visible := TRUE;

       FORMCOMBO_Listbox.SetFocus;



       IgnoreMouse := true;

  end  ;

end;



To hide the list box we use the standed TWPRichText.MouseDown event



procedure TForm1.WPRichText1MouseDown(Sender: TObject; Button: TMouseButton;

 Shift: TShiftState; X, Y: Integer);

begin

 FORMCOMBO_Listbox.Visible := false;

end;



(B) This class item is used only to hide the start insert point.

clip0008



We only use the event OnObjectClassCalcSize to set the width to 0.

...

begin

if Sender=WPRichText1 then // optional, check for a certain drawing editor

  begin

    Distance := 0;

    Width := 0;

    ExtraWidth := 0;

  end;

end;



Of course we need code for the TListBox, too. The code uses the variable CurrField mentioned and assigned above.



procedure TForm1.PicklistClick(Sender: TObject);

var objlst : TWPTextObjList;

   i : Integer;

   s : string;

   CurrentEditor : TWPCustomRTFedit;

begin

  if (Sender AS TListBox).Parent is TWPCustomRTFedit then

  begin

      CurrentEditor := TWPCustomRTFedit( TListBox(Sender).Parent );

      if TListBox(Sender).ItemIndex>=0 then

           s := TListBox(Sender).Items[TListBox(Sender).ItemIndex]

      else exit;

      objlst := CurrentEditor.CodeListTags(wpobjMergeField,CurrField, true);

      try

        for i:=0 to objlst.Count-1 do

          objlst[i].EmbeddedText := s;

      finally

        objlst.Free;

        CurrentEditor.ReformatAll(false, true);

      end;

      TListBox(Sender).Visible := false;

      CurrentEditor.Setfocus;

  end;

end;



Basically we just locate the fields with the name CurrField and assign the selected text from the TListBox. Other than CurrField this code does not refer to any custom object or variable name and should work in your project nicely.
