<< Click to Display Table of Contents >> Navigation: Create a PDF Editor > .NET (C#) Example > Initialize the menu |
The menu is initialized by just this line of code:
pdfViewer1.InitMainMenu(menuStrip1, doExecuteWPViewAction, fileToolStripMenuItem, infoToolStripMenuItem);
menuStrip1: The is is our main menu
doExecuteWPViewAction: This is the function which handles the click events
fileToolStripMenuItem: This is the caption item of the first menu strip. WPViewPDF will insert new file menu items at the start
infoToolStripMenuItem: This is the caption item of the last menu strip. WPViewPDF will append new info menu items at the end

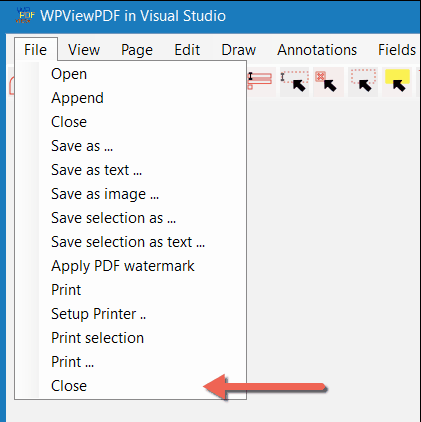

Almost the complete menu was auto generated, only the item "Close" existed before.
The function InitMainMenu has been implemented this inside the pdfviewer class. It first request the count of action "kinds". Each action kind should create one menu caption with a drop down menu. Inside the dropdown menu there are the action "operations". Certain flags are used to hide a submenu or to make a submenu caption item for a deeper drop down menu.
public void InitMainMenu(System.Windows.Forms.MenuStrip menuStrip, System.EventHandler OnClick , System.Windows.Forms.ToolStripMenuItem FileMenu , System.Windows.Forms.ToolStripMenuItem InfoMenu ) { int kmax = Command( commands.COMPDF_ACTION_READ, "kinds", 0); bool isPlus = (Command(commands.COMPDF_GetWPViewPDFPLUSFlag) != 0);
for(int k = 0; k<kmax; k++) { System.Windows.Forms.ToolStripMenuItem men; System.Windows.Forms.ToolStripMenuItem asubmenu = null; int mencount = 0; bool reverse = true; // ------------------------------------------------------------------------------- if ((k == 0) && (FileMenu != null)) men = FileMenu; else if ((k == kmax - 1) && (InfoMenu != null)) { men = InfoMenu; reverse = false; } else { men = new System.Windows.Forms.ToolStripMenuItem(); men.Text = CommandGetStr(commands.COMPDF_ACTION_READ, "kcaption", k); } // ------------------------------------------------------------------------------- int omax = Command(commands.COMPDF_ACTION_READ, "operation", k);
for(int o = omax-1; o>=0; o--) { int ac = (k << 16) + o; string s = CommandGetStr(commands.COMPDF_ACTION_READ, "caption", ac); int flags = Command(commands.COMPDF_ACTION_READFLAGS, ac ); /* flags: wpNeedSeperator, // 1: add an seperator after the menu wpNoMenuItem, // 2: Dont create menu items wpIsPlusAction, // 4: Requires WPViewPDF PLUS wpRequireWriting, // 8: Requires the PDF to be not protected wpGlobalOperation, // 16: This action doe not require PDF to be loaded wpMakeSubmenu // 32: The following items until wpNeedSeperator should be sub menus of this */ if ((s!="") && ((flags & 32)!=0)) { asubmenu = new System.Windows.Forms.ToolStripMenuItem(); asubmenu.Text = s; men.DropDownItems.Add(asubmenu); } else if ((s!="") && (isPlus || ((flags & 4)==0)) && ((flags & 2)==0)) { System.Windows.Forms.ToolStripMenuItem submen; submen = new System.Windows.Forms.ToolStripMenuItem(); submen.Text = s; submen.ToolTipText = CommandGetStr(commands.COMPDF_ACTION_READ, "hint", ac) ; submen.Tag = ac; submen.Click += new System.EventHandler(OnClick);
if (asubmenu != null) asubmenu.DropDownItems.Add(submen); else { if(reverse)men.DropDownItems.Insert(0, submen); else men.DropDownItems.Add(submen);
}
if ((flags & 1)!=0) asubmenu = null; mencount++; } } if (mencount>0) { menuStrip.Items.Add(men); } else men = null; } }
|
InitMainMenu will create new menu items with the propery "Tag" set to an integer value. The integer can be used to execute the action in the viewer. (It consists of the action kind in the high word and the action "Woperation" in the low word).
The value of 0 is not used, 1 refers to "File open", 2 will be used for "File Append" - any other value should not be expected to be fixed.
