Control Zooming:
COMPDF_Zoom100 = 41.............! 100 % Zoom
COMPDF_ZoomIn = 42.............! + 10%
COMPDF_Zoom = 43.............! Zoom to StrPar/IntPar - if IntPar=0 retrieve zoom!
if StrParam = "MP" zooming will center to mouse position
if StrParam = "RECT" the viewer will zoom to the frame rectangle which was drawn last. This allows the implementation
of a zoom tool.
COMPDF_ZoomOut = 44.............! - 10%
COMPDF_ZoomFullWidth = 45.............! Page Width
COMPDF_ZoomFullPage = 46.............! Page Width
COMPDF_ZoomTwoPages = 47.............! Toggle 2 Pages Display
COMPDF_ZoomThumbs = 48.............! Thumbnail Preview
Note: Maximum zooming value is 500
To read the current zooming use
COMPDF_ZoomGetCurrent (= 49).............! read current zoom
This command saves and restores the zooming
COMPDF_ZoomSaveRestore = 76;
IntPar=1 Saves, IntPar=0 Restores
This command controlls zooming in thumbnail window (left panel)
COMPDF_ZoomThumbnails = 77;
Set the auto zoom property of the thumbnail view
COMPDF_ZoomThumbnailsAuto = 79;
0 = Off
1 = Width
2 = FullPage
3 = SideBySide
4 = AsManyAsPossibleInRow
5 = AsManyAsPossibleInRowMinOne (=default - adjust zooming to show full page)
IntPar>=10 sets the thumbnail zoomsize (default 12), -9..9 increases or decreases the zoom value
Example:

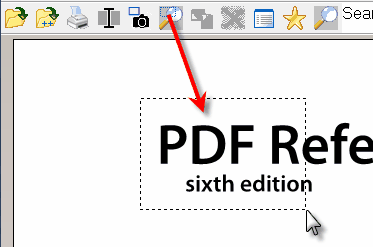

Implementation of Zoom Tool:
var FSelectZoomRect, FSaveToClip : Boolean;
procedure TWPViewPDFDemo.ZoomToolClick(Sender: TObject);
begin
FSelectZoomRect := true;
WPViewPDF1.CommandEx(COMPDF_SelectMode, 2);
end;
Use the OnSelRectEvent event:
procedure TWPViewPDFDemo.DoSelRectEvent(Sender: TObject; const PageNr: Integer;
R: TRect);
begin
if FSelectZoomRect then
begin
Screen.Cursor := crDefault;
WPViewPDF1.CommandStr(COMPDF_ZOOM, 'RECT');
end else
// This code is used to capture a bitmap
if FSaveToClip then
begin
if WPViewPDF1.CommandEx(COMPDF_SaveBMPToClipboard, 200)>0 then // Save in 200 dpi quality
ShowMessage('An image @200 dpi was copied to clipboard.');
end else
// This code is used to capture as text
if FCopyTextRect then
begin
if WPViewPDF1.CommandEx(COMPDF_CopyToClibrd,8)>0 then
ShowMessage('Text copied to clipboard.');
end;
end;
