You can use wPDF also with the new WPTools Version 7 (and also V5 or V6) which introduces a complete rewritten RTF engine with superior RTF and HTML capabilities.
Outlines will created from paragraphs which use the WPAT_WPAT_ParIsOutline property. The value (>0) will be used as outline level.
To add PDF export fast use the form TWPCreatePDF which has been implemented in unit WPToPDFDlg. This will create the form above.
procedure TWPTBXForm.CreatePDFClick(Sender: TObject);
var pdfcreate: TWPCreatePDF;
begin
pdfcreate := TWPCreatePDF.Create(Self);
pdfcreate.EditBox := WPRichText1;
try
pdfcreate.ShowModal;
finally
pdfcreate.Free;
end;
end;
Alternatives:
a) use TWPPDFExport in code.
uses ..., WPPDFWP, WPRTEDefs, WPCTRMemo, WPCTRRich;
procedure TForm1.ExportFromWPTools(Sender: TObject);
var pdf : TWPPDFExport;
begin
pdf := TWPPDFExport.Create(nil);
pdf.Source := WPRichText1;
try
pdf.FileName := 'c:\wp5out.pdf';
pdf.Print;
finally
pdf.Free;
end;
end;
b) Basically the code in WPPDFWP.PAS code is based on the following example which uses the TWPPDFPrinter directly.
// uses WPRTEPaint, WPPDFR1, WPPDFR2;
procedure TForm1.ExportToPDF(Sender: TObject);
var WPPDFPrinter1: TWPPDFPrinter;
i,w,h : Integer;
begin
WPPDFPrinter1 := TWPPDFPrinter.Create(nil);
WPPDFPrinter1.FileName :='c:\wptools5demo.pdf';
WPPDFPrinter1.CompressStreamMethod := wpCompressFastFlate;
WPPDFPrinter1.AutoLaunch := TRUE;
WPPDFPrinter1.BeginDoc;
try
i := 0;
while i<WPRichText1.CountPages do
begin
w := MulDiv(WPRichText1.Memo._PaintPages[i].WidthTw,WPScreenPixelsPerInch,1440);
h := MulDiv(WPRichText1.Memo._PaintPages[i].HeightTw,WPScreenPixelsPerInch,1440);
if (w=0) or (h=0) then
begin
w := Round( WPRichText1.Memo.PaintPageWidth[i] / WPRichText1.Memo.CurrentZooming );
h := Round( WPRichText1.Memo.PaintPageHeight[i] / WPRichText1.Memo.CurrentZooming );
end;
WPPDFPrinter1.StartPage( w, h, Screen.PixelsPerInch, Screen.PixelsPerInch, 0);
try
// Use 0 as w and h to let the function calculate the width and height
WPRichText1.Memo.PaintRTFPage(i,0,0,0,0,WPPDFPrinter1.Canvas, [wppWhiteIsTransparent,wppInPaintForwPDF] );
finally
WPPDFPrinter1.EndPage;
end;
inc(i);
end;
finally
WPPDFPrinter1.EndDoc;
WPPDFPrinter1.Free;
end;
end;
To create watermarks simply add additional code which prints on the WPPDFPrinter1.Canvas.
Or you can easily print 2 pages on the same PDF page, just make changes in 4 lines:
var WPPDFPrinter1: TWPPDFPrinter;
i, w, h : Integer;
begin
WPPDFPrinter1 := TWPPDFPrinter.Create(nil);
WPPDFPrinter1.FileName :='c:\wptools5demo.pdf';
WPPDFPrinter1.CompressStreamMethod := wpCompressFastFlate;
WPPDFPrinter1.AutoLaunch := TRUE;
WPPDFPrinter1.BeginDoc;
try
i := 0;
while i<WPRichText1.CountPages do
begin
w := MulDiv(WPRichText1.Memo._PaintPages[i].WidthTw,WPScreenPixelsPerInch,1440);
h := MulDiv(WPRichText1.Memo._PaintPages[i].HeightTw,WPScreenPixelsPerInch,1440);
if (w=0) or (h=0) then
begin
w := Round( WPRichText1.Memo.PaintPageWidth[i] / WPRichText1.Memo.CurrentZooming );
h := Round( WPRichText1.Memo.PaintPageHeight[i] / WPRichText1.Memo.CurrentZooming );
end;
WPPDFPrinter1.StartPage(w, h div 2,
Screen.PixelsPerInch, Screen.PixelsPerInch, 0);
try
// Use 0 as w and h to let the function calculate the width and height
WPRichText1.Memo.PaintRTFPage(i,0,0,w div 2,h div 2,WPPDFPrinter1.Canvas, [] );
WPRichText1.Memo.PaintRTFPage(i+1,w div 2,0,w div 2,h div 2,
WPPDFPrinter1.Canvas, [wppInPaintForwPDF] );
finally
WPPDFPrinter1.EndPage;
end;
inc(i,2);
end;
finally
WPPDFPrinter1.EndDoc;
WPPDFPrinter1.Free;
end;
end;

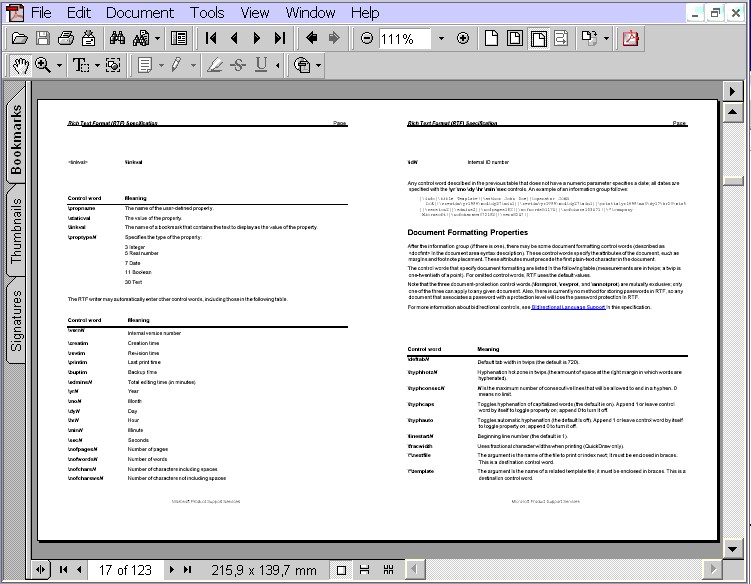

This is a screenshot of a PDF file created with the above code:
